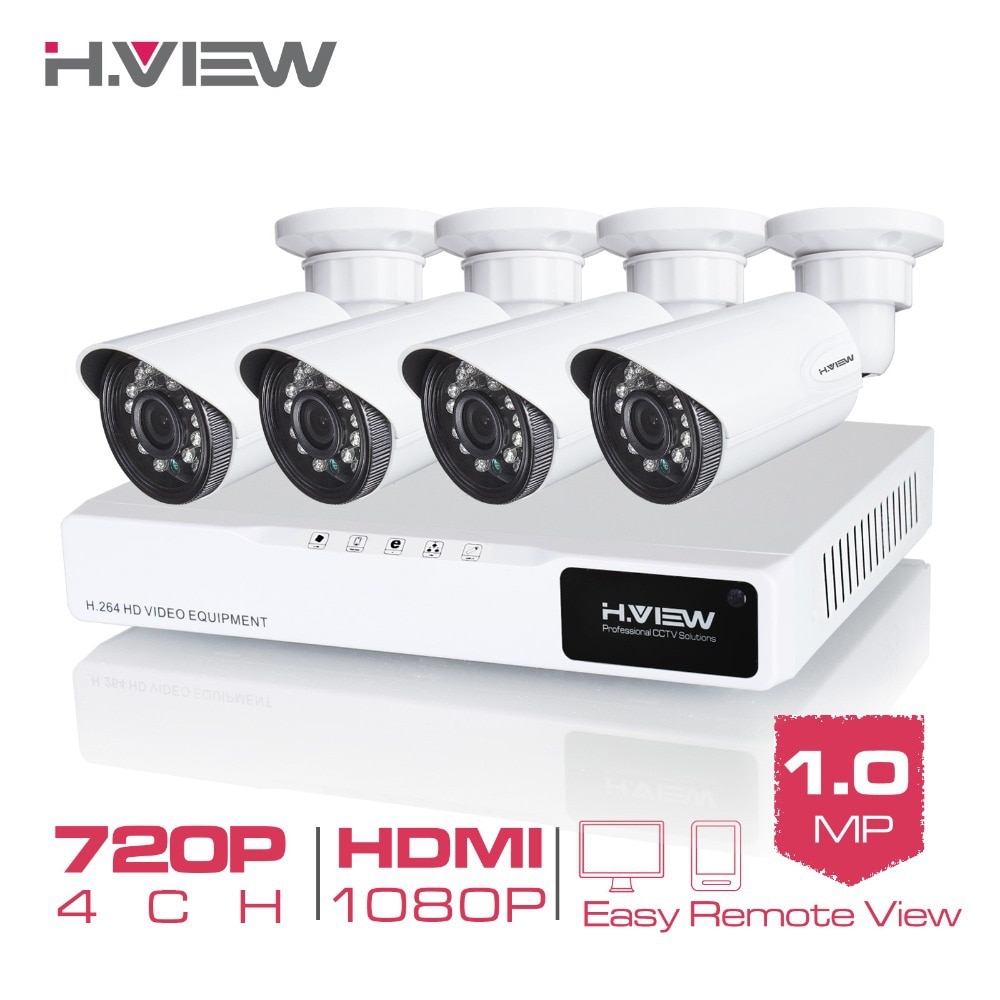

H.View 4CH CCTV System 720P HDMI AHD CCTV DVR 4PCS 1.0 MP IR Outdoor Security Camera 1200 TVL Camera Surveillance Kit

The remote controller & power supply will be shipped at random.
Same features just appearance different.

The application of AHD 720P technology makes a higher resolution which improve the image of the replay more delicate.

The IR cut will enhance the video quality(trurer color and clearer picture) both day and night.

QR-code scan to remote access in seconds, remote viewing on your phone, pad and PC.

(Support iOS, Android mobile device & Windows PC)

Select access “By Device”;
Enter Your
Serial Number: Visit Main Menu-Info-Version to get Serial NO.
User Name: “admin” as default
Password: no need as default

Unique client software, provide professional centralized management system.
Customize surveillance windows, support maximum 64 windows remote view at the same time.
Easily control DVRs from different places on One PC.

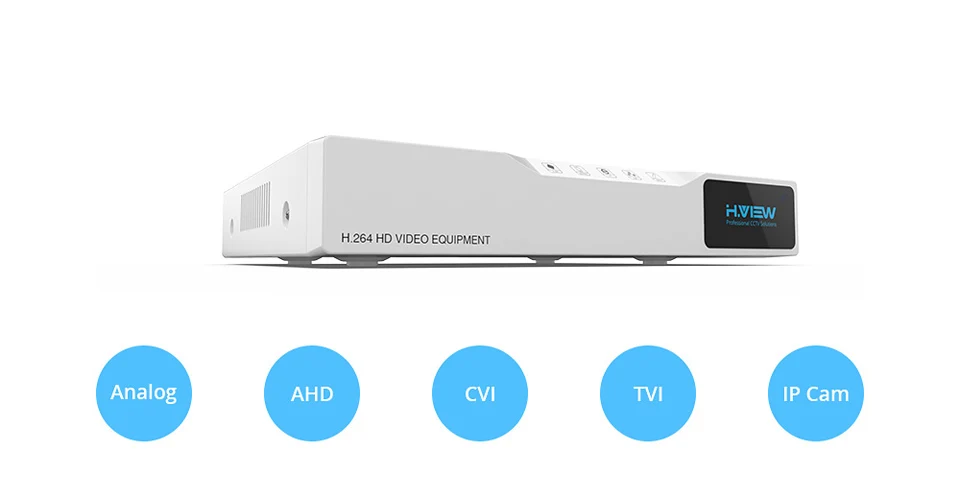

H.View 5 in 1 Digital Video Record both AHD 720P & Analog 960H Resolution, perfectly work with old model analog camera & 720P AHD/TVI/CVI Camera & IP Camera.

1.Screw the backet base to the celling(or wall);
2.Loosen the nut;
3.Adjust the angle of the camera;
4.Tighten the nut to fix the angle.

Please be noted this picture just as a reference for multi-model input, not the package included.

1.Advanced Motion Detection Recording

When motion detection function be activated, the DVR will only record when motion be detected in the defence zones.

2.Manual Recording

3.Recording By Schedule

A built-in USB port gives you the option of backing up and transferring your video footage
with a USB flash driveor external USB hard dive. You can search video by Date. Time or Event,
Simply choose the desired date and time range,and the requested video clip will appear.
Clips are labeled event, which makes it easy to find a particular footage

DVR Specification:

Video Compression:H.264 Video System:NTSC / PAL Operation System:Linux Based Operation Interface:Graphical User Interface(GUI) Video Input / Output:BNC: 4-Channel Input / 1-Channel Output Other Video Output:VGA/HDMI Audio Input / Output:Input: 4ch/ Output: 1ch Display Resolution:NTSC: 720P / PAL: 720P Record Resolution:Optional: 720P/ 960H Record Mode:Continuous /Time Schedule /Motion Detection Network Function:Support Live View with IE & Mobile Phone Network:RJ45, 10M/100M Net Protocol:TCP/IP, PPPoE, DHCP and DDNS Remote Access:LAN or Internet Browsing PTZ Control:RS-485 HDD Interface:Support SATA Hard Disk(320G-4TB) USB:USB Backup/USB 2.0 Remote Control:IR Remote Control Power Supply:DC12V Camera Specification: Image Sensor:CMOS TV System:NTSC / PAL Horizontal Resolution:720P Lens:3.6mm Number of IR LEDs:24 LEDs Infrared Illumination (Night Vision):up to 65ft Minimum Illumination:0.0 Lux S/N Ratio:> 48dB Video Output:1.0Vp-p, 75 ohms Operating Temperature:-25F~122F / -32C ~50C Weatherproof:Yes Power:12V DC Material:Metal Body & ABS+PC Lid Item Included: 1 x 4CH AHD 720P Network Digital Video Recorder 4 x 1.0 Megapixels 720P CMOS IR Weatherproof Cameras 24 LEDs 4 x 18m(60ft) Power Video Plug and Play Cable for CCTV Camera 1 x 12V Power Supply for DVR 1 x 12V Power Supply for Camera 1 x 1 to 4 split cable 1 x Mouse for DVR 1 x Remote Control for DVR 1 x English user guide
